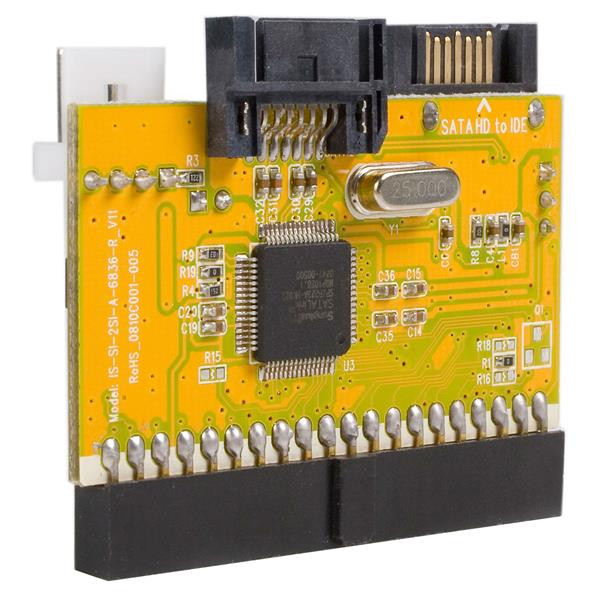

StarTech.com IDE to SATA Drive Motherboard Adapter
StarTech.com IDE to SATA Drive Motherboard Adapter
Product Description
This IDE to SATA Drive Adapter Kit offers a simple way to install Serial ATA hard drives using an available IDE port - a cost-effective solution for using newer SATA drives on a legacy computer or a computer with all SATA connections already in use.
This dual channel bridge lets you connect two high-speed SATA drives without the cost and effort of upgrading your IDE (Parallel ATA) motherboard, while minimizing the space required for IDE cable connections - helping to improve airflow within the case which in turn helps to optimize system performance.
Plus, the IDE to SATA Drive Motherboard Adapter includes a power connector and SATA data cables, to ensure the upgrade to SATA is easy!
| Warranty Information | |
|---|---|
| Warranty | Lifetime |
| Hardware | |
| Chipset ID | Sunplus - SPIF223A |
| Connector(s) | |
| Drive Connectors | 1 - SP4 (4 pin; Small Drive Power) Male |
| 2 - SATA (7 pin; Data) Plug | |
| Host Connectors | 1 - IDE (40 Pin; EIDE/PATA) Female |
| Performance | |
| Type and Rate | SATA I (1.5 Gbps) |
| Software | |
| OS Compatibility | OS independent; No Software or drivers required |
| Physical Characteristics | |
| Product Length | 2.1 in [54 mm] |
| Product Width | 1.8 in [45.5 mm] |
| Product Height | 0.4 in [11 mm] |
| Product Weight | 0.4 oz [12.7 g] |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 lb [0.1 kg] |
| What's in the Box | |
| Included in Package | 1 - IDE to SATA Converter |
| 1 - LP4 Molex to SP4 Floppy Power Adapter Cable | |
| 2 - SATA Cable | |
