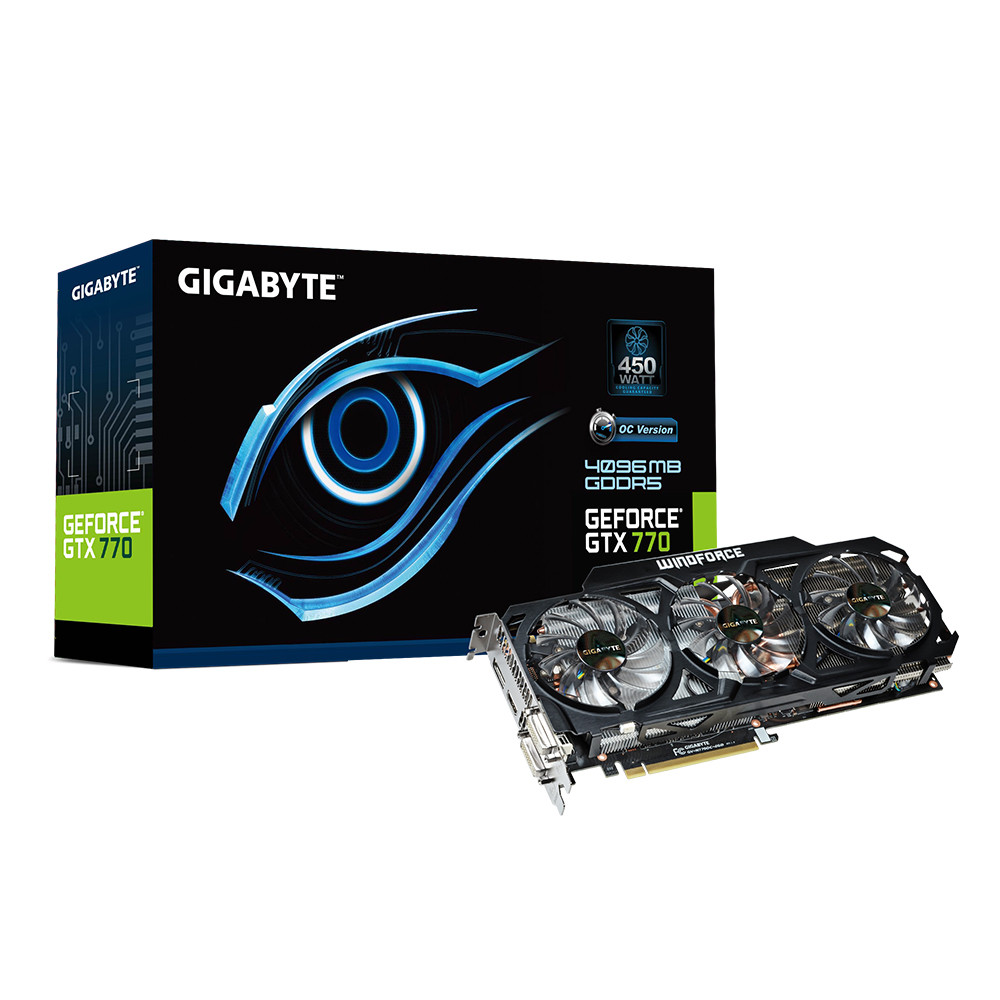

Gigabyte GTX 770 GDDR5-4GB 2xDVI/HDMI/DP OC WINDFORCE 3X Graphics Card GV-N770OC-4GD
Gigabyte GTX 770 GDDR5-4GB 2xDVI/HDMI/DP OC WINDFORCE 3X Graphics Card GV-N770OC-4GD
Product Description
Keeping the same 450W Cooling capacity using only 2 slots, the New WINDFORCE 3X 450W cooling system is equipped with two 8mm and four 6mm cooper heat-pipes , inclined fans, and GIGABYTE “Triangle Cool” technology. This not only provides an effective heat dissipation capacity but GPU Boost 2.0 technology also enables higher performance due to a lower temperature.
Brand-new instinctive user interface, easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK,FAN, OSD, ONLINE SUPPORT and update driver, BIOS directly
Lower GPU Temperature
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.
Better Overclocking Capability
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.
Decrease Power Switching Loss
Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.
On board 4GB of GDDR5 memory, satisfying your multi-screen setup, high definition and extreme gaming experience.
| Chipset | GeForce GTX 770 |
| Memory Clock | 7010 MHz |
| Process Technology | 28 nm |
| Memory Size | 4096 MB |
| Memory Bus | 256 bit |
| Core Clock | Base / Boost clock:1137 / 1189 MHz |
| Card Bus | PCI-E 3.0 |
| Memory Type | GDDR5 |
| DirectX | 11.2 |
| OpenGL | 4.4 |
| PCB Form | ATX |
| Digital max resolution | 4096 X 2160(via a single HDMI connector and not supported with two DVI connectors) |
| Analog max resolution | 2048 x 1536 |
| Multi-view | 4 |
| I/O | Dual-link DVI-I*1 DVI-D*1 DisplayPort*1 HDMI*1 |
| Card size | L=292mm W=129mm H=43mm |
| Power requirement | 600W (with one 6-pin and one 8-pin external power connectors) |
