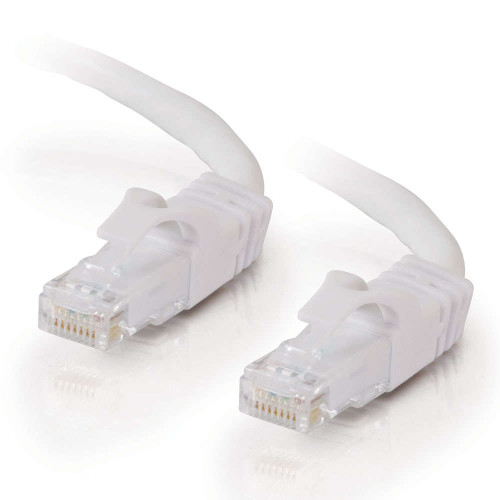

C2G 0.3m Cat6 Booted Unshielded (UTP) Network Patch Cable - White
C2G 0.3m Cat6 Booted Unshielded (UTP) Network Patch Cable - White
Product Description
Overview
For voice/data/video distribution, this cable it will handle bandwidth-intensive applications up to 550 MHz. Meets all Cat6 TIA/EIA-568-B-2.1, draft 9 standards, and drastically reduces both impedance and structural return loss (SRL) when compared to standard 100 MHz wire. Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point.
Constructed from high quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels. The snagless, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of Colours to easily colour-code your network installation.
Connector 1: (1) RJ-45 Male
Connector 2: (1) RJ-45 Male
Product Specifications
• Conductor DC Resistance - 9.38Ω100m (maximum) • Impedance - 100Ω • Capacitance - 5600pf/100m • Propagation Delay - 545ns/100m (maximum) • Delay Skew - 45ns/100m (maximum) Physical Characteristics • Wiring Scheme - T568B • Standard: Category 6 TIA/EIA-568-B-2.1, draft 9 • Connector: 50 micron gold-plated RJ45 • Temperature Rating – 60°C • Voltage Rating - 30V • Approvals - RoHS Compliant • Warranty – Lifetime • Package Type – Polybag Conductor (Qty. 4 twisted pair) • Conductor Type - 24AWG (7/0.20), Stranded Bare Copper • Insulation - H-D PE • Diameter - 0.98 ± 0.05mm • Colours - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White Connector Type (Qty. 2) • Connector Type - 8P8C (RJ45) • Gender – Male • Connector Material – Polycarbonate • Contact Material - Copper Alloy, Gold Plating - 50µm • Hood Material - Moulded PVC Overall Cable • Jacket – PVC • Minimum Average Thickness - 0.60mm • Outer Diameter - 6.20 ± 0.30mm | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
