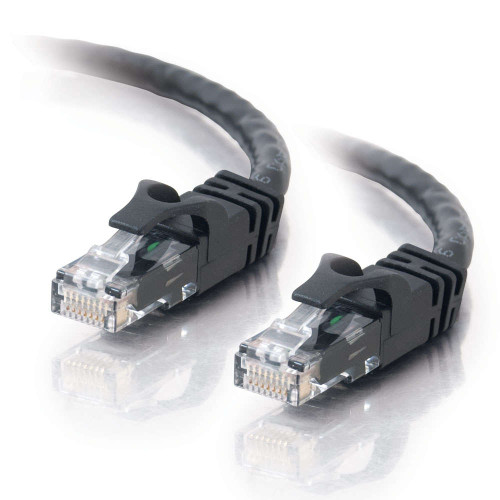

C2G 0.3m Cat6 Booted Unshielded (UTP) Network Patch Cable - Black

£1.68 (inc VAT) £1.40 (exc VAT)

C2G 0.3m Cat6 Booted Unshielded (UTP) Network Patch Cable - Black

£1.68 (inc VAT) £1.40 (exc VAT)
SKU:
83404
Weight:
0.04 KGS
Shipping:
Calculated at checkout
Quantity:
Share

Product Description

Overview

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimises Near-End Crosstalk (NEXT) levels. The moulded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colours to easily color-coded your network installation. Each cable is individually labelled with the length for ease of use.

Connector 1: (1) RJ-45 Male

Connector 2: (1) RJ-45 Male



Product Specifications

Colour: Black
UPC: 757120834045
Warranty: Lifetime
Vendor: C2G
Weight: 0.021 KG
Length: 0.30 Meter

Electrical Characteristics
• Conductor DC Resistance - 9.38Ω100m (maximum)
• Impedance - 100Ω
• Capacitance - 5600pf/100m
• Propagation Delay - 545ns/100m (maximum)
• Delay Skew - 45ns/100m (maximum)

Physical Characteristics
• Wiring Scheme - T568B
• Standard: Category 6 TIA/EIA-568-B-2.1, draft 9
• Connector: 50 micron gold-plated RJ45
• Temperature Rating – 60°C
• Voltage Rating - 30V
• Approvals - RoHS Compliant
• Warranty – Lifetime
• Package Type – Polybag

Conductor (Qty. 4 twisted pair)
• Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
• Insulation - H-D PE
• Diameter - 0.98 ± 0.05mm
• Colours - Blue, Blue-White, Orange, Orange-White, Green, Green-White, Brown, Brown-White

Connector Type (Qty. 2)
• Connector Type - 8P8C (RJ45)
• Gender – Male
• Connector Material – Polycarbonate
• Contact Material - Copper Alloy, Gold Plating - 50µm
• Hood Material - Moulded PVC

Overall Cable
• Jacket – PVC
• Minimum Average Thickness - 0.60mm
• Outer Diameter - 6.20 ± 0.30mm
